| 产品展示 |

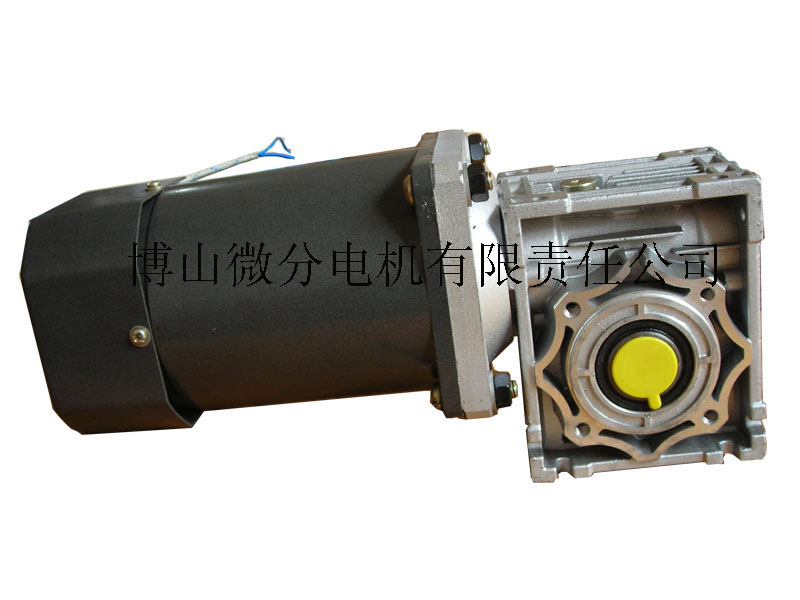

| NMRV系列蝸轮减速电动机 |
 |
| 产品详细介绍 |
概 述
NMRV系列蜗轮减速电机是由蜗轮减速器，与各种电机(包括三相交流、单相交流。直流伺服、永磁直流电机等)组合而成。产品在符GB10085-88圆柱蜗轮参数基础上吸收了国内外先进技术，形成方形铝合金箱体，结构合理，外形美观，散热性能好，便干维修。
本系列电机运行平稳，噪声低，传动速比大，运载能力强，且可配用多种类型电机，以实现调速拖动。
箱内润滑油用量
| 润滑用油（公升） |
| NMRV |
025 |
030 |
040 |
050 |
063 |
075 |
090 |
110 |
130 |
| B3.20 |
0.02 |
0.04 |
0.08 |
O.15 |
0.3 |
O.55 |
1 |
3 |
4.5 |
B3.21
|
2.2
|
3.3
|
| B3.22一B3.23 |
2.5 |
3.5 |
| V3.11—V3.12 |
3 |
4.5 |
| |
型号 |
I |
n2 r/min |
M2 N.M |
0.06KW |
NMRV025 |
7.5 |
186 |
2.6 |
NMRV030
|
7.5
|
186
|
26
|
| NMRV025 |
10 |
140 |
3.4 |
| NMRV030 |
10 |
140 |
3.4 |
| NMNV025 |
15 |
94 |
4.9 |
| NMNV030 |
15 |
94 |
4.7 |
| NMRV025 |
20 |
70 |
6.1 |
| NMRV030 |
20 |
70 |
6 |
| NMRV030 |
25 |
56 |
7 |
| NMRV025 |
30 |
47 |
8.2 |
NMRV030
|
30
|
47
|
8
|
| NMNV025 |
40 |
35 |
10.2 |
NMRV030
|
40
|
35
|
9.7
|
| NMRV025 |
50 |
28 |
11 |
| NMRV030 |
50 |
28 |
11.3 |
| NMRV040 |
50 |
28 |
12.7 |
| NMRV025 |
60 |
24 |
11 |
| NMRV030 |
60 |
24 |
12.5 |
| NMRV040 |
60 |
24 |
14.2 |
| NMRV030 |
80 |
18 |
12.5 |
| NMRV040 |
80 |
18 |
17 |
| NMRV040 |
100 |
14 |
19.2
|
| 0.09KW |
NMRV025 |
7.5 |
186 |
3.9 |
| NMRV030 |
7.5 |
186 |
3.9 |
| NMRV025 |
10 |
140 |
5.1 |
| NMRV030 |
10 |
140 |
5 |
| NMRV025 |
15 |
94 |
7.3 |
| NMRV030 |
15 |
94 |
7.1 |
| NMRV025 |
20 |
70 |
9.2 |
| NMRV030 |
20 |
70 |
9 |
| NMRV030 |
25 |
56 |
10.4 |
| NMRV025 |
30 |
47 |
12.3 |
| NMRV030 |
30 |
47 |
12 |
| NMNV025 |
40 |
35 |
13 |
| NMRV030 |
40 |
35 |
14.5 |
| NMBV030 |
50 |
28 |
16.9 |
| NMRV040 |
50 |
28 |
19 |
| NMRV030 |
60 |
24 |
16.9 |
| NMRV040 |
60 |
24 |
21.4 |
| NMRV040 |
80 |
18 |
25.5 |
| NMRV040 |
100 |
14 |
28.9
|
| NMRV030 |
7.5 |
186 |
5.2 |
| 0.12KW |
NMRV040 |
7.5 |
186 |
5.3 |
| NMRV030 |
10 |
140 |
6.7 |
| NMRV040 |
10 |
140 |
7 |
| NMRV030 |
15 |
94 |
9.5 |
| NMNV040 |
15 |
94 |
10.1 |
| NMRV030 |
20 |
70 |
12 |
| NMRV040 |
20 |
70 |
12.8 |
| NMRV030 |
25 |
56 |
13.9 |
| NMRV040 |
25 |
56 |
15.3 |
| NMRV030 |
30 |
47 |
16 |
| NMRV040 |
30 |
47 |
17.2 |
| NMRV030 |
40 |
35 |
17 |
| NMRV040 |
40 |
35 |
21.3 |
| NMRV050 |
40 |
35 |
21.9 |
| NMRV040 |
50 |
28 |
25.4 |
| NMRV050 |
50 |
28 |
25.8 |
| NMRV040 |
60 |
24 |
28.5 |
| |
型号 |
I |
n2 r/min |
M2 N.M |
0.12KW |
NMRV050 |
60 |
24 |
29 |
NMRV040
|
80
|
18
|
34.1 |
| NMRV050 |
80 |
18 |
34.7 |
| NMRV050 |
100 |
14 |
40.1 |
O.18KW |
NMRV030 |
7.5 |
186 |
8 |
| NMRV040 |
7.5 |
186 |
8 |
| NMRV030 |
10 |
140 |
10 |
| NMRV040 |
10 |
140 |
10 |
| NMRV030 |
15 |
94 |
14 |
| NMRV040 |
15 |
94 |
15 |
NMRV030
|
20
|
70
|
18 |
| NMRV040 |
20 |
70 |
19 |
NMRV030
|
25
|
56
|
20 |
| NMRV040 |
25 |
56 |
23 |
| NMRV040 |
30 |
47 |
26 |
| NMRV040 |
40 |
35 |
32 |
| NMRV050 |
40 |
35 |
32 |
| NMRV040 |
50 |
28 |
38 |
| NMRV050 |
50 |
28 |
38 |
| NMRV050 |
60 |
24 |
34 |
| NMRV050 |
80 |
18 |
53 |
| NMRV050 |
100 |
14 |
55 |
| 0.25KW |
NMRV040 |
7.5 |
186 |
11 |
| NMRV050 |
7.5 |
186 |
11 |
| NMRV040 |
1O |
140 |
14 |
| NMRV050 |
10 |
140 |
14 |
| NMRV040 |
15 |
94 |
20 |
| NMRV050 |
15 |
94 |
21 |
| NMRV040 |
20 |
70 |
26 |
| NMRV050 |
20 |
70 |
26 |
| NMRV040 |
25 |
56 |
31 |
| NMRV050 |
25 |
56 |
32 |
| NMRV040 |
30 |
47 |
36 |
| NMRV050 |
30 |
47 |
36 |
| NMRV040 |
40 |
35 |
44 |
| NMRV050 |
40 |
35 |
45 |
| NMRV050 |
50 |
28 |
53 |
| NMRV050 |
60 |
24 |
60 |
| NMRV050 |
80 |
18 |
65 |
| NMRV063 |
80 |
18 |
77 |
| NMRV050 |
100 |
14 |
55 |
| NMRV063 |
100 |
14 |
85 |
O.37KW
|
NMRV040 |
7.5 |
186 |
16 |
| NMRV050 |
7.5 |
186 |
16 |
| NMRV040 |
10 |
140 |
21 |
| NMRV050 |
10 |
140 |
21 |
| NMRV040 |
15 |
94 |
30 |
| NMRV050 |
15 |
94 |
31 |
| NMRV040 |
20 |
70 |
39 |
| NMRV050 |
20 |
70 |
39 |
NMRV050 |
25
|
56
|
47 |
| NMRV050 |
30 |
47 |
54 |
| NMRV050 |
40 |
35 |
66 |
| NMRV063 |
40 |
35 |
70 |
| NMRV050 |
50 |
28 |
73 |
| NMRV063 |
50 |
28 |
83 |
| NMRV063 |
60 |
24 |
95 |
| NMRV063 |
80 |
18 |
114 |
| NMPRV063 |
100 |
14 |
118 |
|
|
|
|
